Heat Shrink Tubing Processing Equipment

  • Model:KS-H120M
  • Brand:KINGSING
  • Voltage:220V (Can be customized)
  • Function:
  • Price:

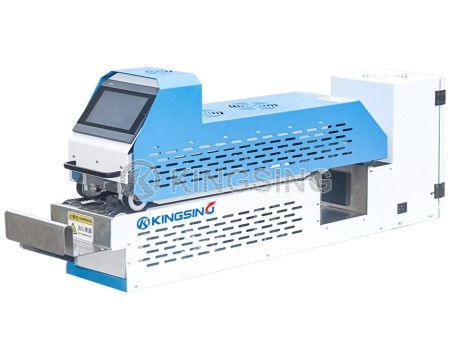

This is a multifunctional dual-station heat shrink tube heating machine, whether the heat shrink tube is located at the head or in the middle of the wire, this machine can easily handle it. When one of the stations is in the heating process, the other station can take and pay off the wire, which helps to improve work efficiency.

KINGSINGKINGSINGKINGSING

The fixture for fixing the wire can be customized according to the product, which can precisely limit the position of the heat shrinkable tube on the wire. The heating chamber can automatically move on the XY axis, and the moving position can be set in the program. The heating chamber can also swing left and right during the heating process, moreover, there are ceramic infrared heating plates on the upper and lower sides of the heating chamber, which can ensure that the heat shrinkable tube is heated evenly.

Color touch screen opertation interface, parameter settings are intuitive and easy to understand. It supports 485, network port communication, can be connected with MES system to realize intelligent production.


Download: (1)

Max. Temperature: 570℃ (ceramic heater)

Max. Tube Length: 120mm (Can be customized)

Heating Cavity Depth: 240mm

Power Rating: 2500W

Power Supply: 220V 50/60Hz

Net. Weight:

Dimension: 1600×1000×1650mm

Note: Conforms to the relevant CE directives on machine safety and electromagnetic compatibility.
